Title: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:44pm
Hi

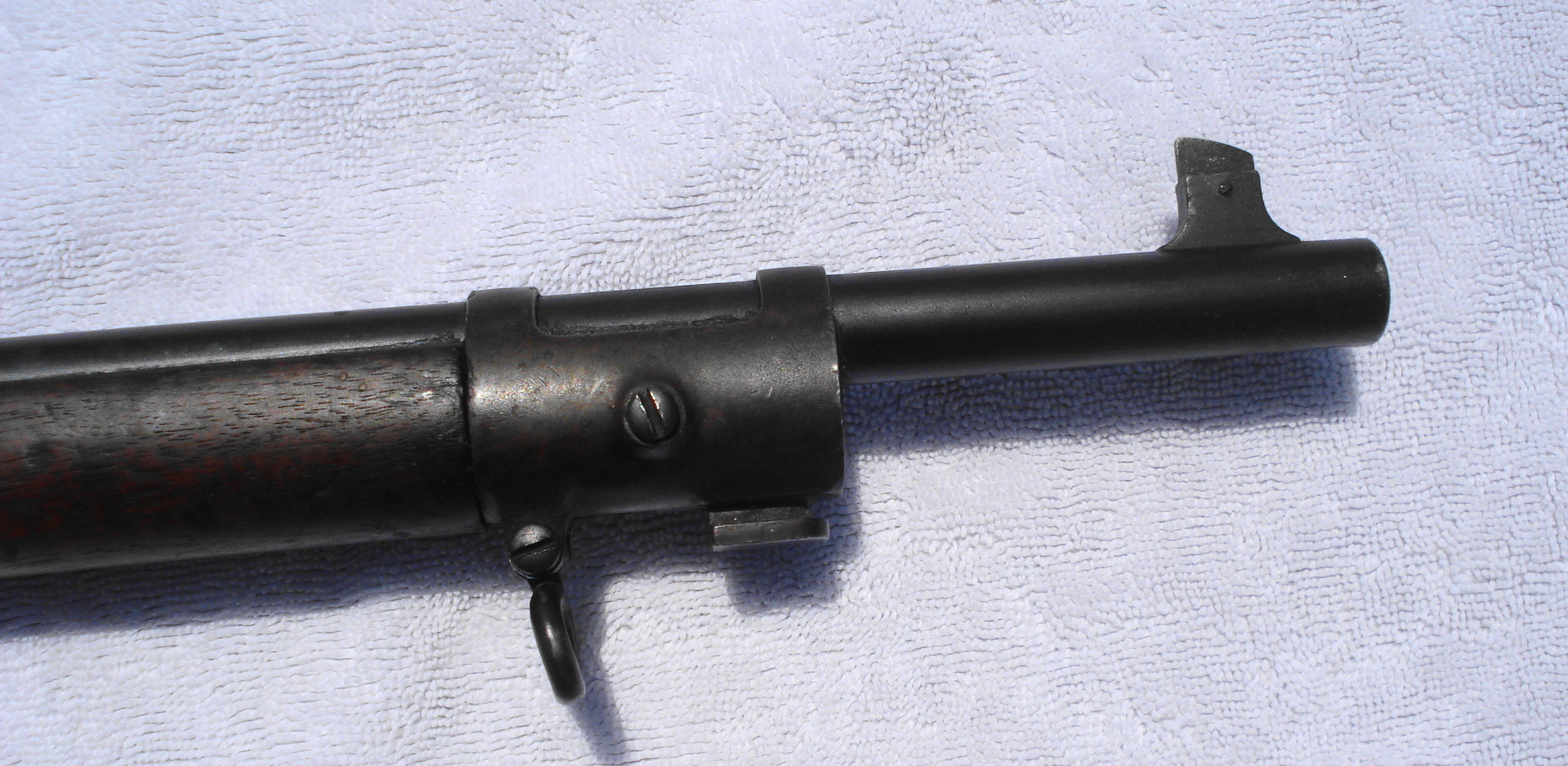

Just joined this forum and was looking for some info on a Krag rifle I recently purchased. I know very little about these firearms, as my primary rifle collecting interest is Mauser 98ks. I have no idea of it value. What year was it made? Thank you Serial #438982 There is a faded black circle with a letter inside, located on the stock behind the trigger guard. No other visible stamping on the stock. The boar would be considered fair to good, with distict rifling visible. Attached photos: DSC01125.JPG ( 806 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:46pm

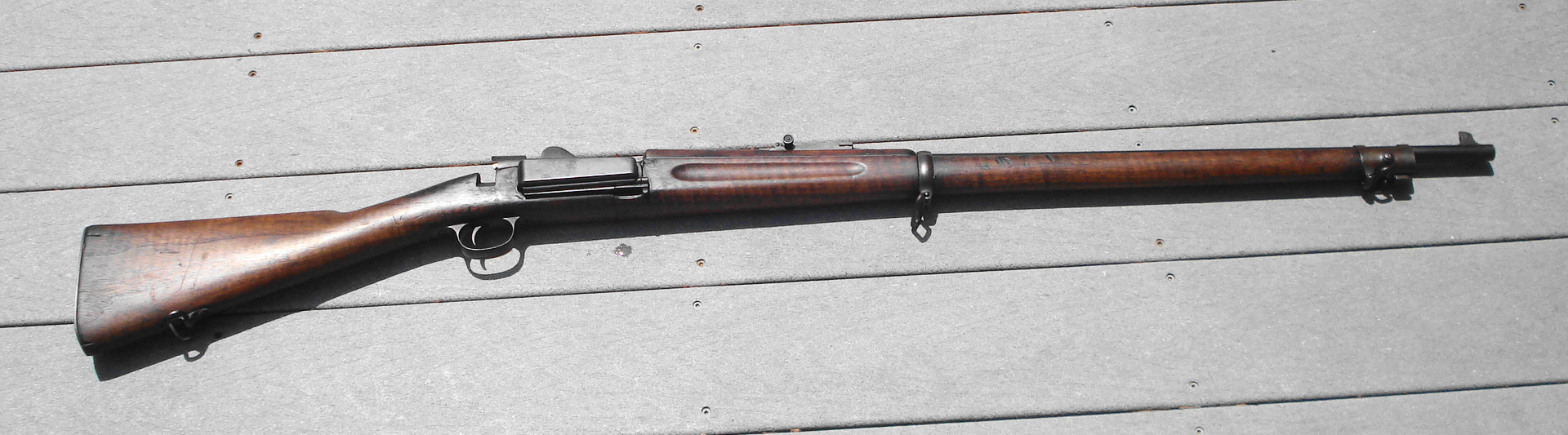

Another one
DSC01116.JPG ( 436 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:46pm

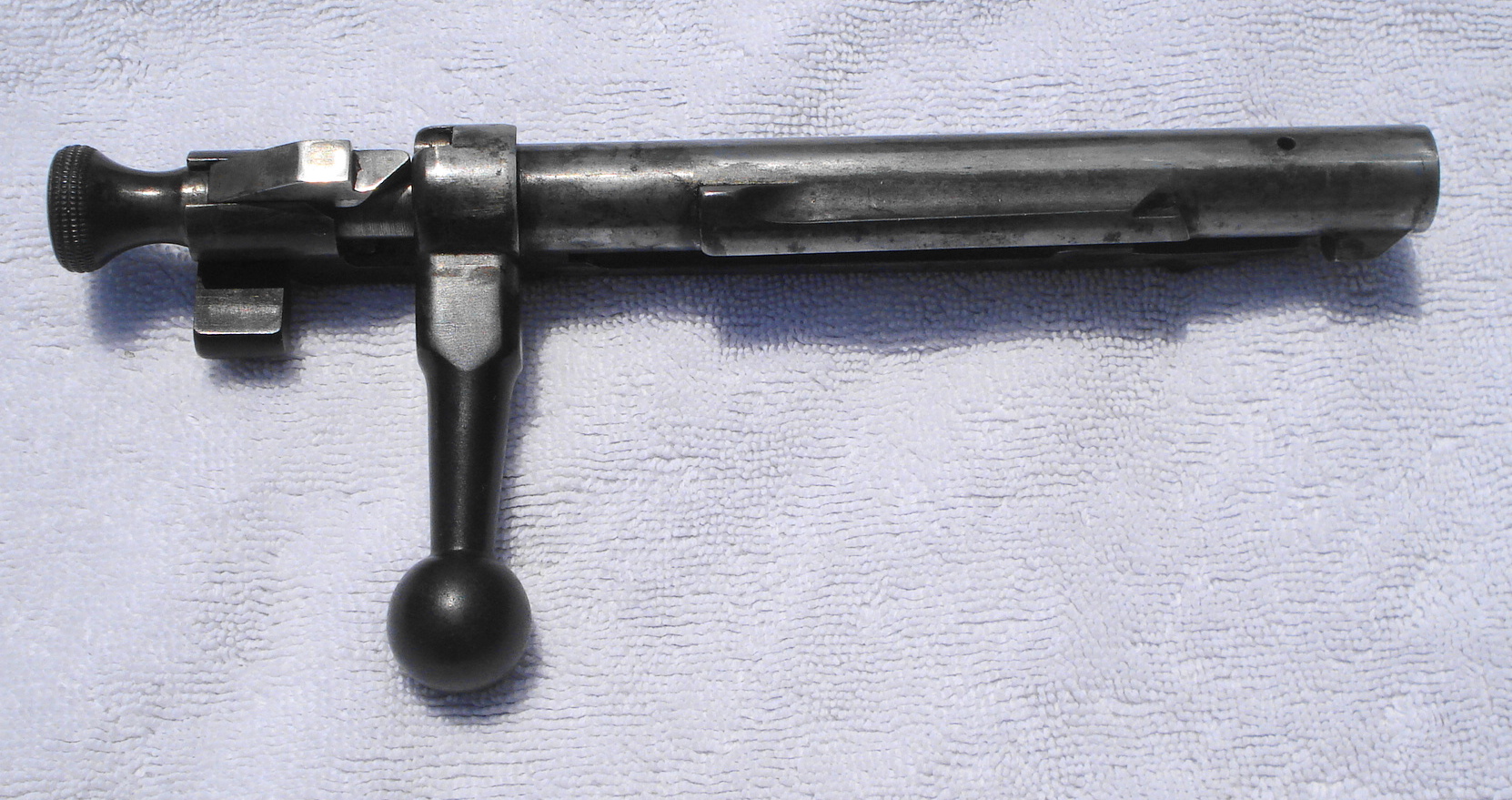

Bolt
DSC01118.JPG ( 673 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:47pm

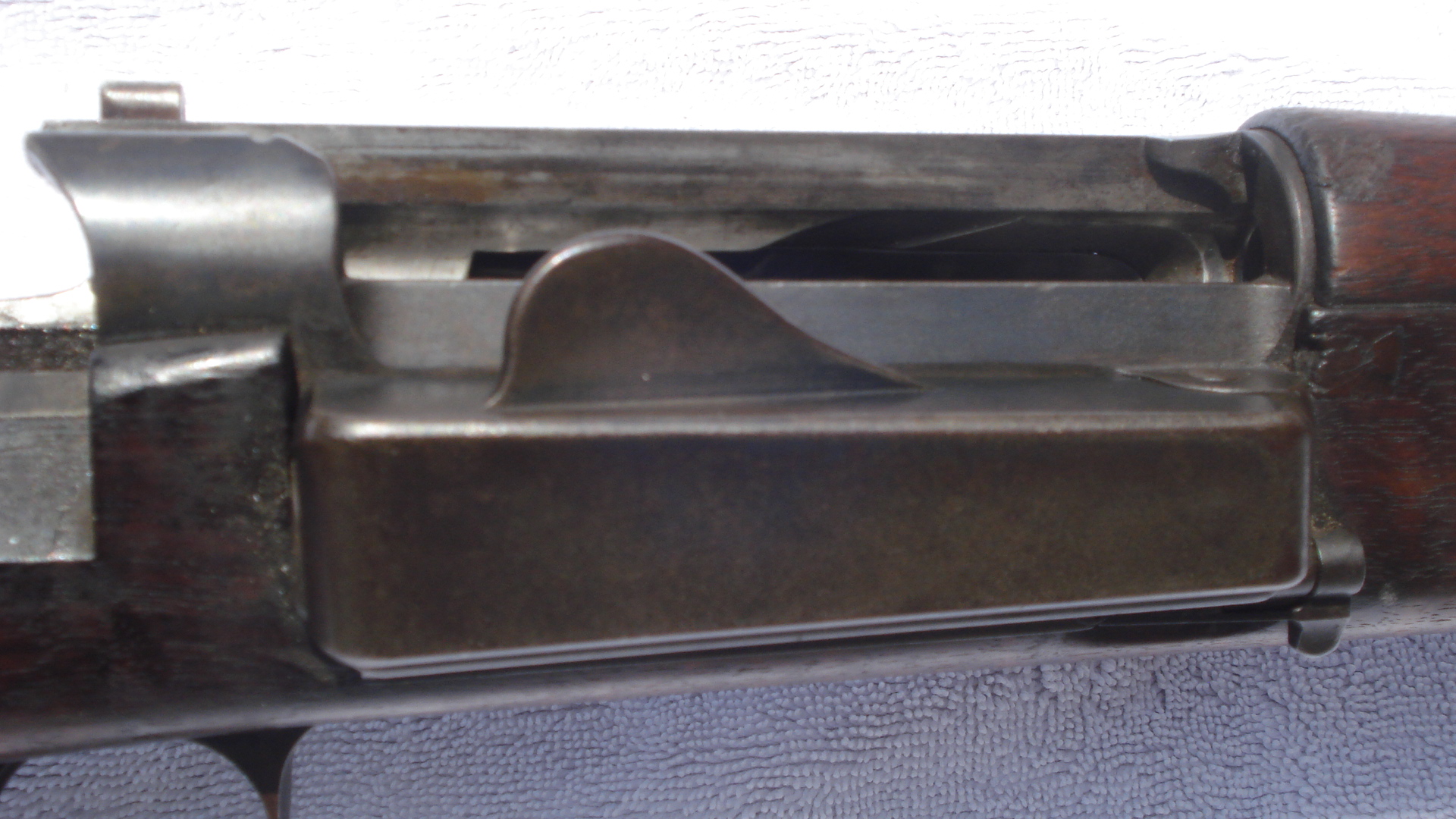

Side plate
DSC01121.JPG ( 748 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:48pm

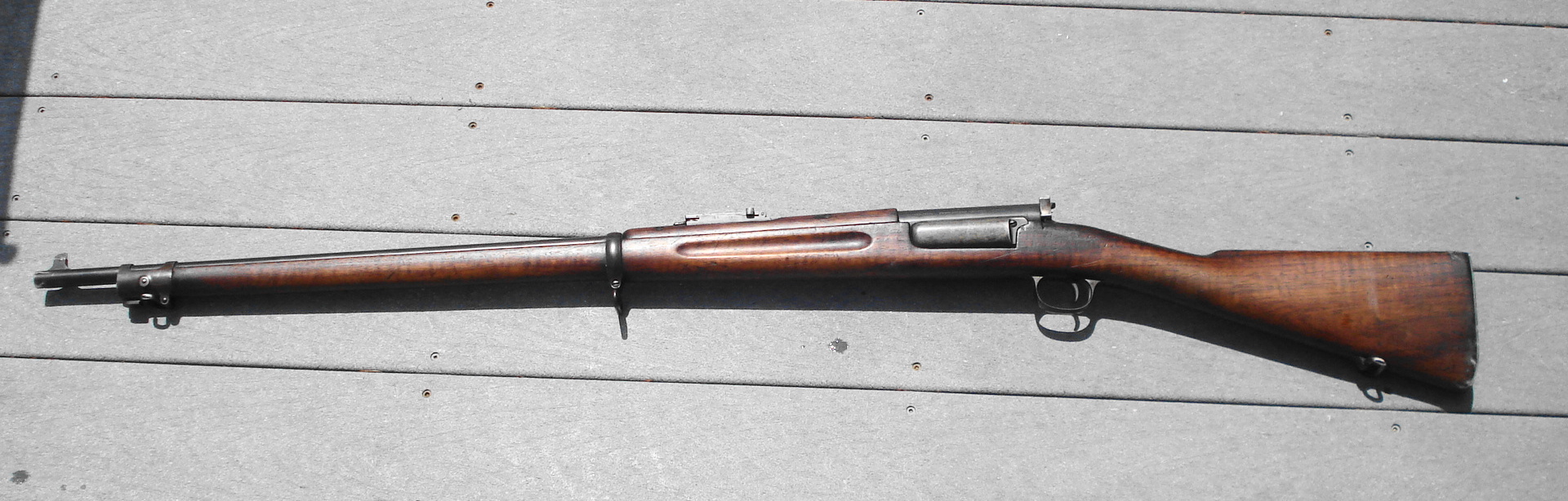

Other side over view
DSC01117.JPG ( 508 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:49pm

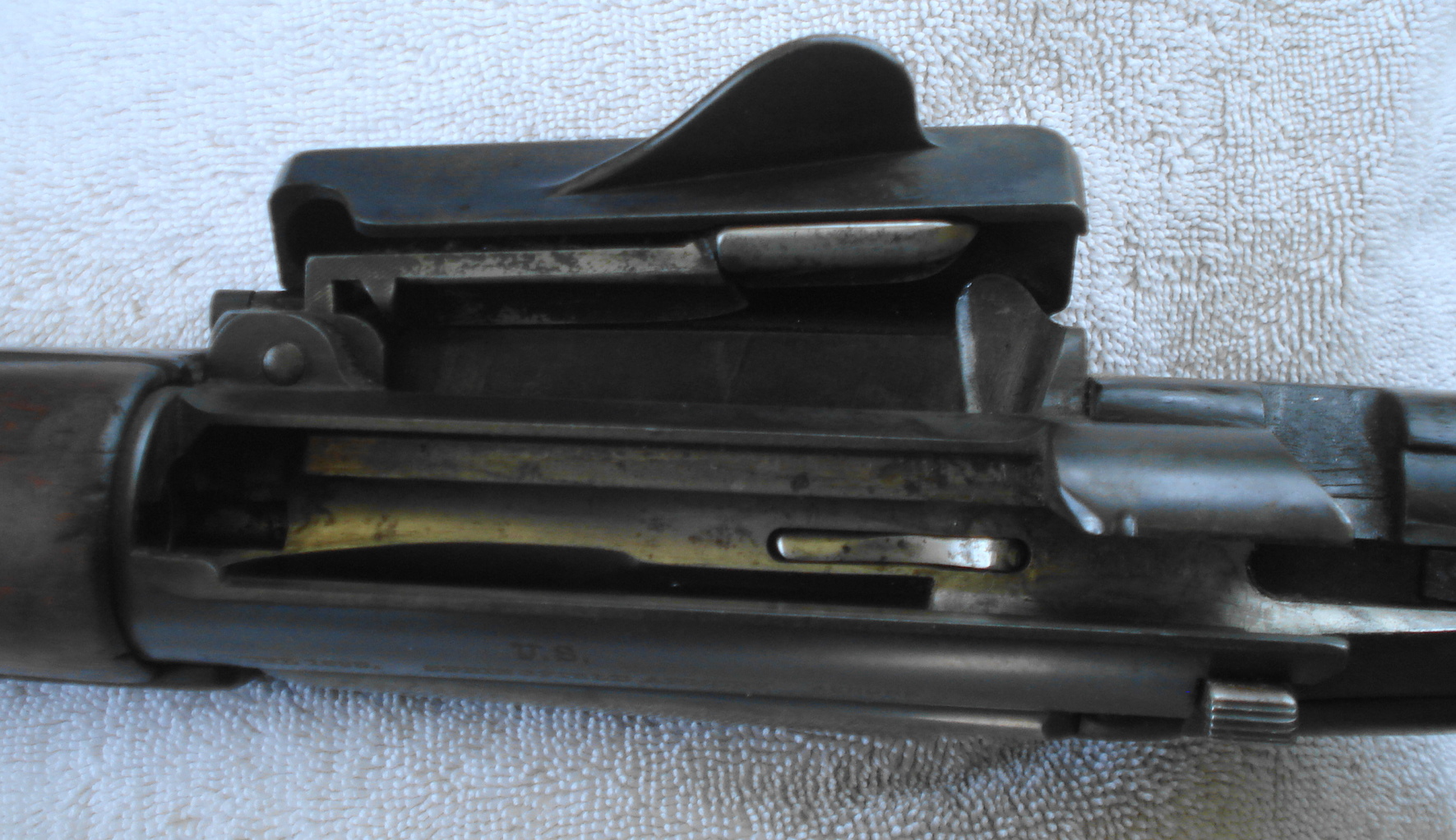

Another one
DSC01132.JPG ( 666 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:49pm

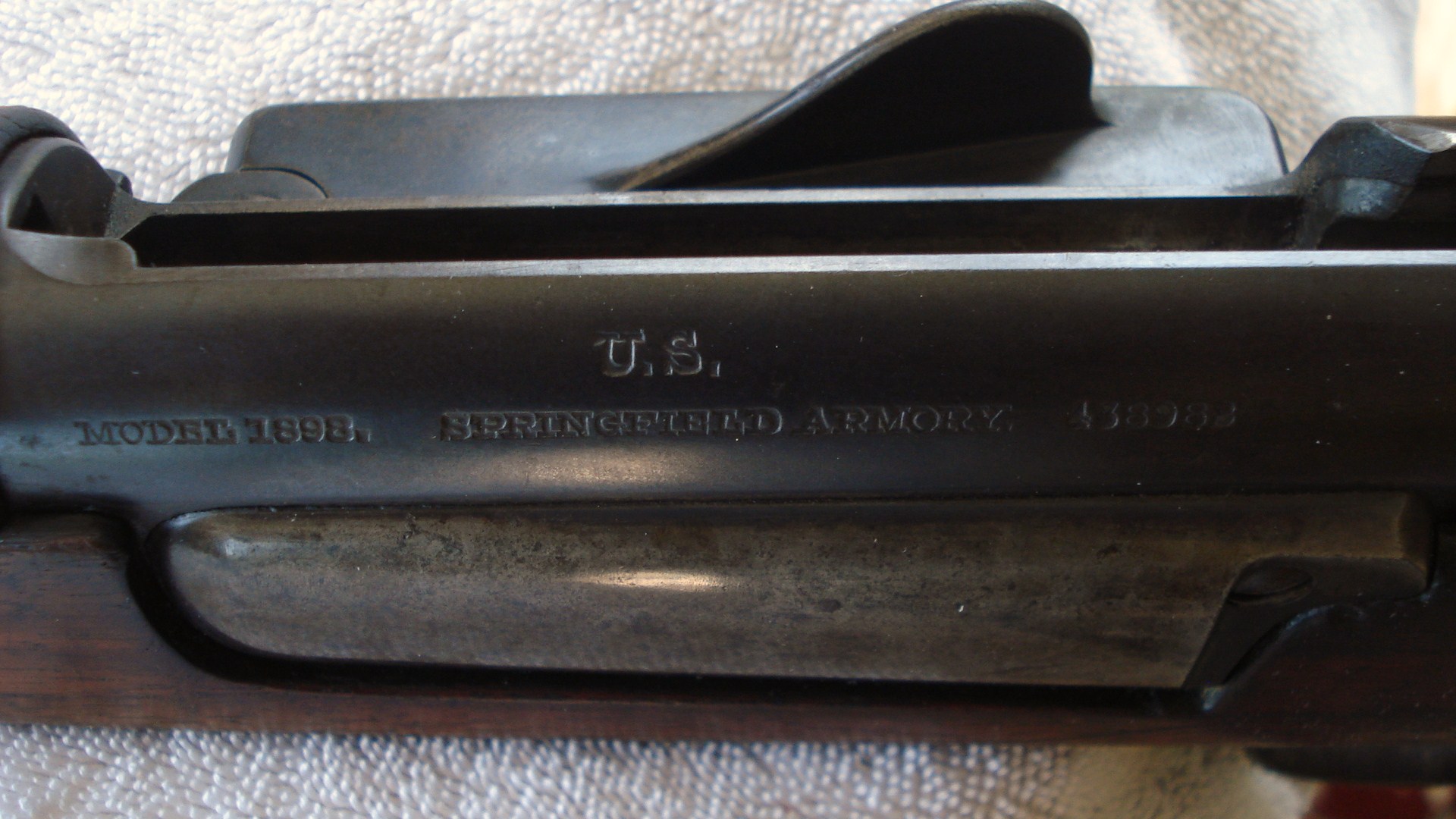

Info on side plate
DSC01137.JPG ( 339 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:50pm

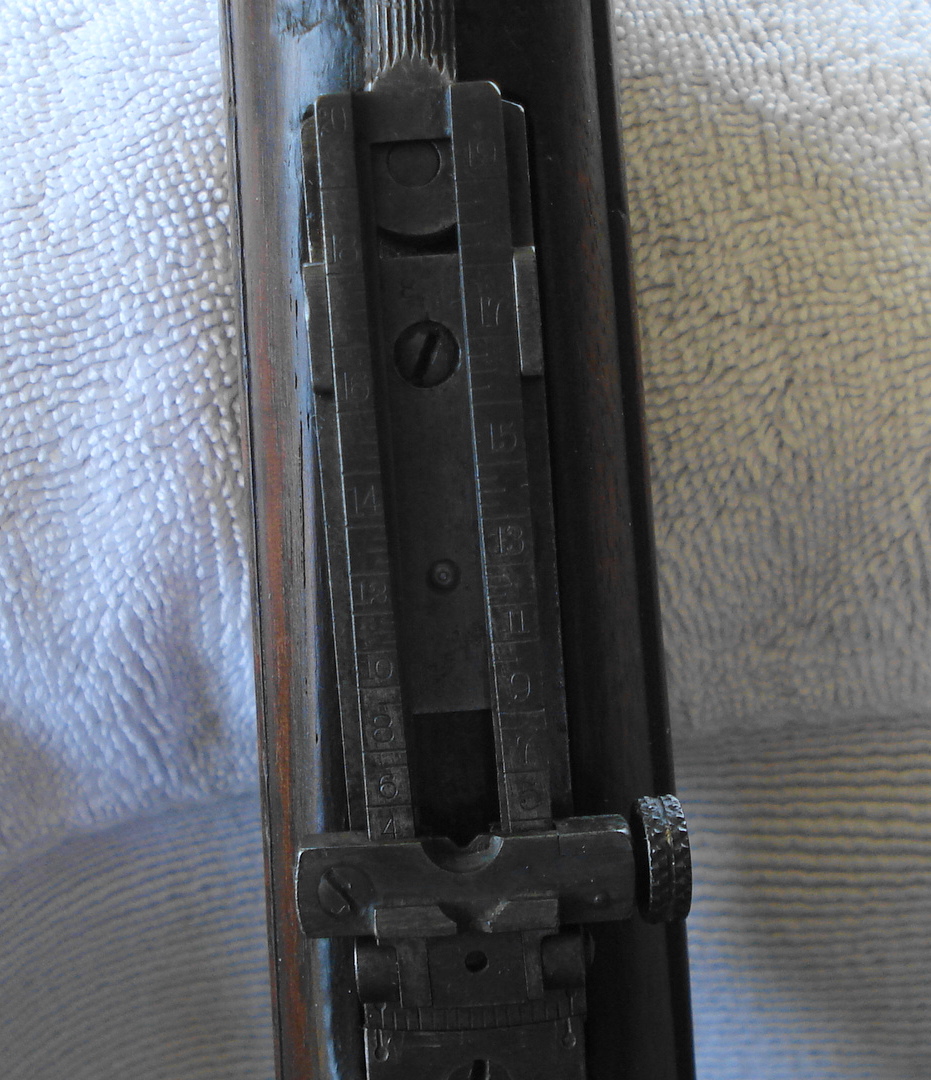

Sight
DSC01134.JPG ( 424 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:51pm

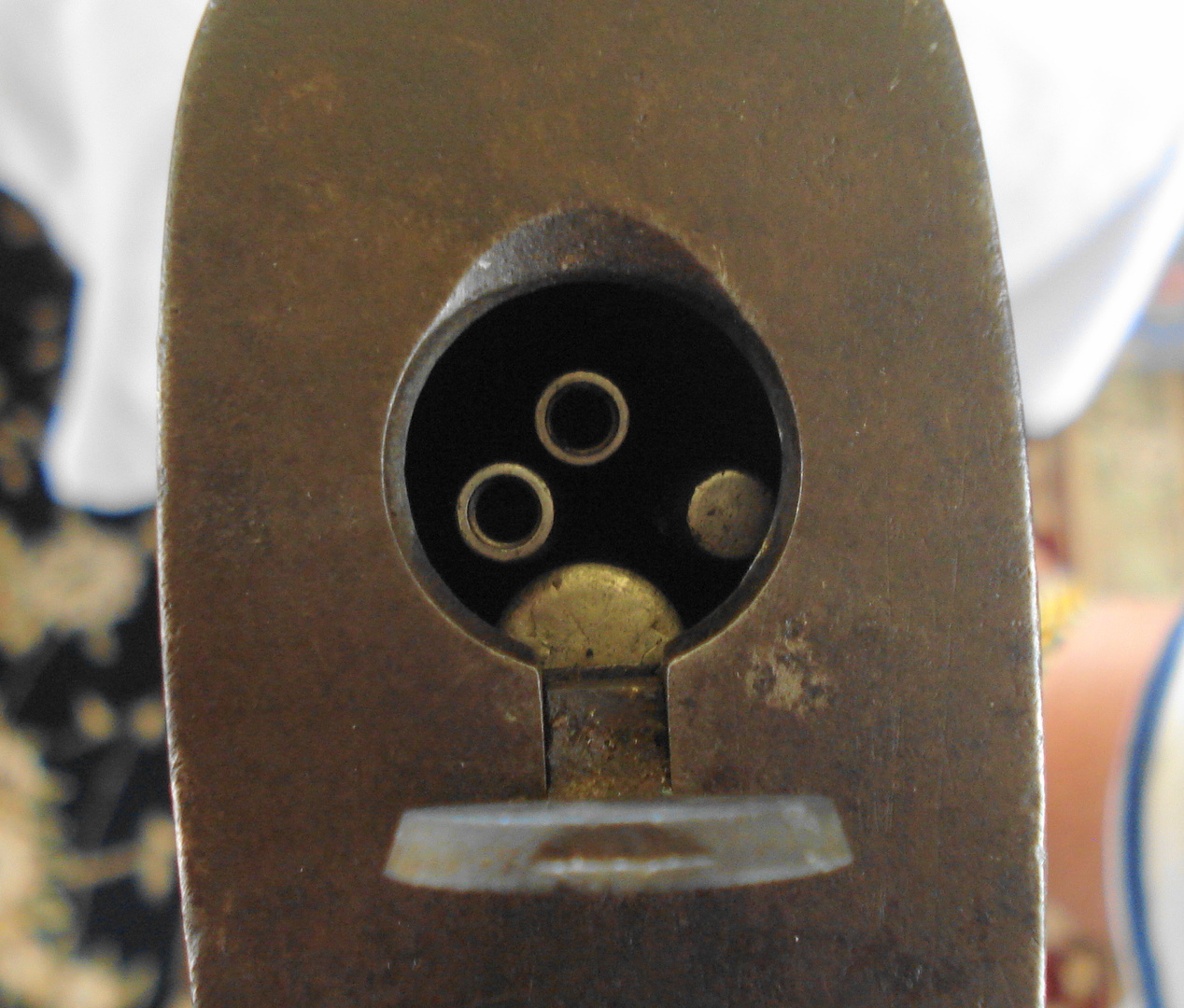

Cleaning equipment in butt stock
DSC01139.JPG ( 526 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:52pm

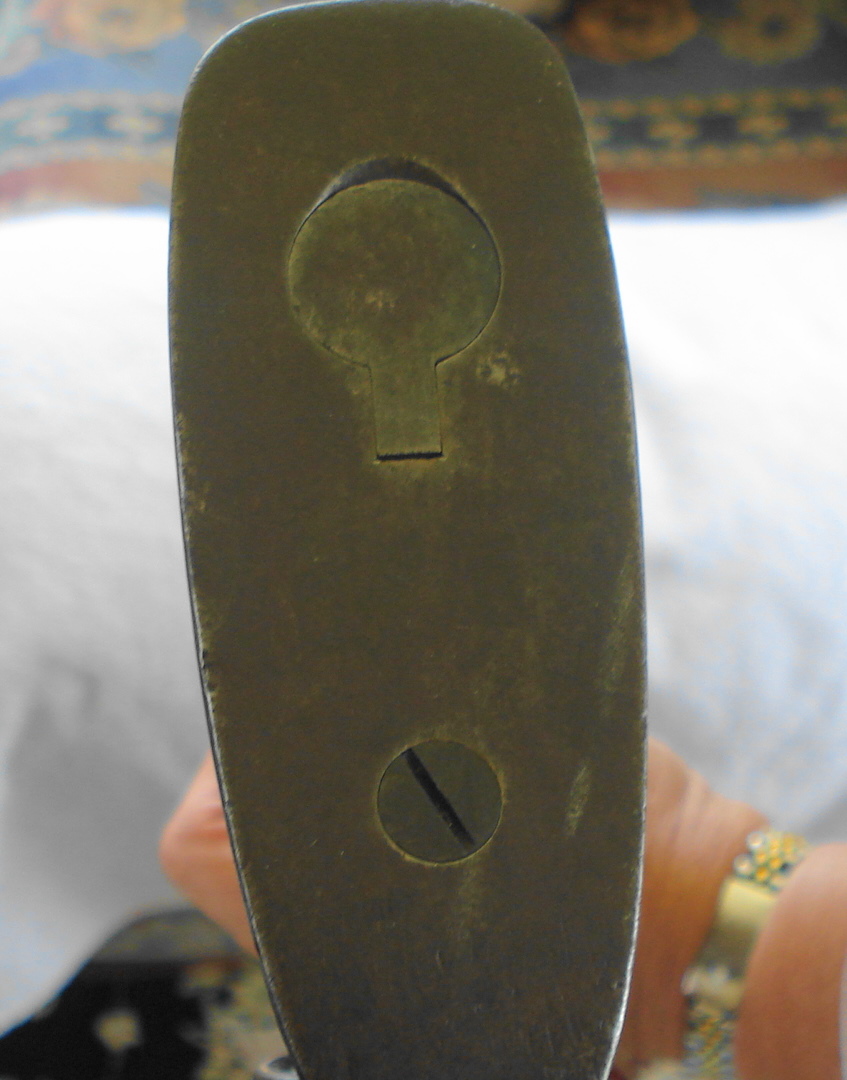

Closed butt stock
DSC01138.JPG ( 249 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:53pm

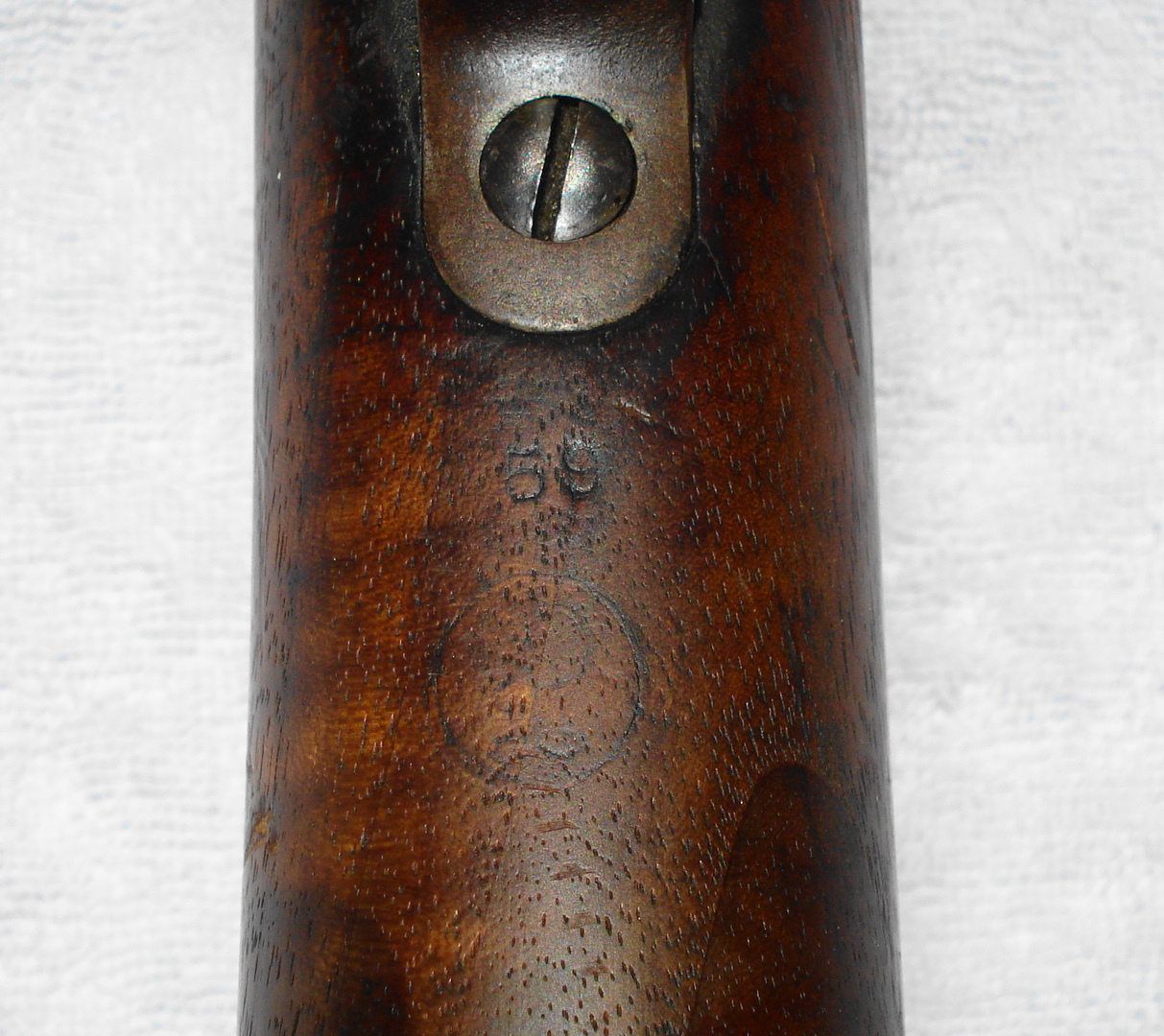

Behind the trigger guard
DSC01126.JPG ( 526 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 18th, 2012 at 11:54pm

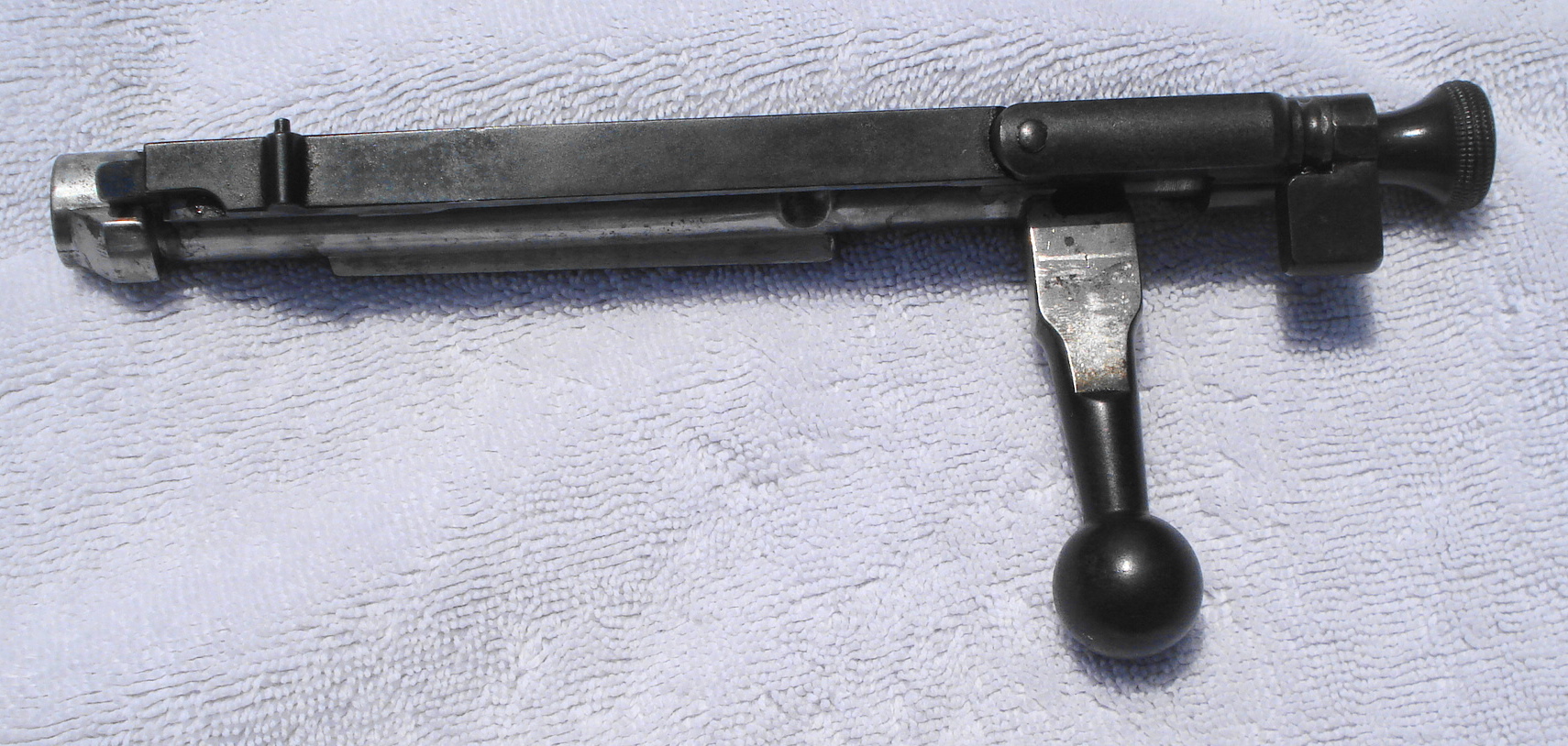

Other side of the bolt.
DSC01119.JPG ( 676 KB | 0
Downloads ) |
|
Title: Re: Krag Rifle Post by butlersrangers on Jun 19th, 2012 at 1:37am
Gercolctor: Your Model 1898 Krag was probably built in February 1903. The stock stamp behind the trigger-guard is a stylized "P" in a circle. This indicates the stock passed inspection. If there is not a stock Cartouche (in a rounded square with inspector initials and date) on the left side in front of the stock-wrist, your stock is probably a field replacement. Your stock appears to be one of the Italian Walnut stocks that were purchased around 1900-01. Your Krag has the 1901 sight. The metal finish looks a bit rough on your Krag. Your stock appears to have some small cracks. I'd guess the value of your rifle at $550 to $700. IMHO. The 3 piece cleaning rod and oiler are worth about $55. Its hard to assess condition and appeal based strictly on pictures.
|
|
Title: Re: Krag Rifle Post by butlersrangers on Jun 19th, 2012 at 3:12am
Gercolctor: Your lower (mid) barrel-band with sling-swivel is on wrong. The "U" on the barrel-band should be on the right right side of the rifle with the open top of the "U" pointed toward the muzzle.
|
|
Title: Re: Krag Rifle Post by Dick Hosmer on Jun 19th, 2012 at 4:58am
And, last but not least, your bolt has become uncocked and it will not go back in until you fix it! Kudos for not having to ask about how to get it out, though!! :-)
|
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 20th, 2012 at 12:11am
Dick
I took the picture of the bolt after I removed it from the rifle in order to clean it. It is now seated back in the rifle and works perfectly. Took a little "doing" to figure out how to disassemble it, but followed the directions in The Gun Digest Assembly book. BTW - thanks for all of your help in getting me onto this forum. :) |
|
Title: Re: Krag Rifle Post by Gercolctor on Jun 20th, 2012 at 12:13am
butlersrangers
Thanks for the info on my rifle. I will correct the barrel band swivel direction. There is no cartouche on the stock with the date, so as you suggested, it is a replacement. |
|
