Message started by Beachbumbob on Mar 16th, 2013 at 5:08am

Title: Re: 1901 Carbine Sight??
Post by butlersrangers on Mar 17th, 2013 at 8:55pm

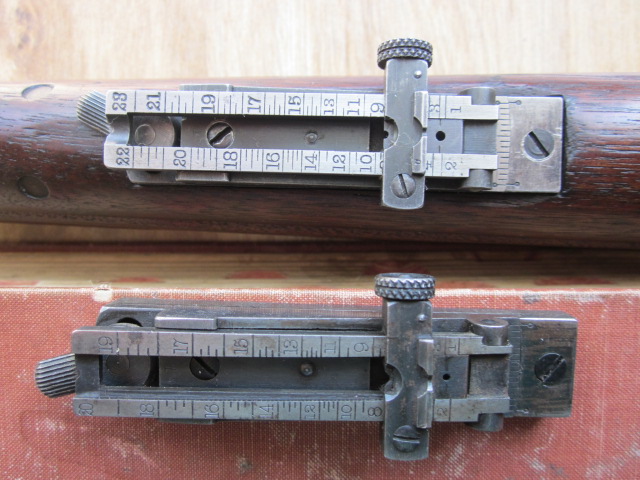

Beachbumbbob:  Unless someone has aggressively filed or machined a 1901 Rifle sight slide to fit the 1901 Carbine sight ladder, your slide is a Carbine slide that wear has probably defaced so the small 'c' can no longer be seen.  The Carbine slide width is .235".  The Rifle slide width is .289".  A difference of .054" (54 thousandths).  The Rifle ladder corrects for drift and the Carbine ladder does not.  Attached is a photo contrasting the Rifle and Carbine 1901 rear sights (the Carbine sight is the upper one).  Notice how fragile the "c" mark is on the slide.
