General >> Older threads >> 1901 Carbine Sight?? http://www.kragcollectorsassociation.org/cgi-bin/yabb2/YaBB.pl?num=1363410529 Message started by Beachbumbob on Mar 16^th, 2013 at 5:08am

Title: Re: 1901 Carbine Sight??
Post by butlersrangers on Mar 17^th, 2013 at 10:22pm

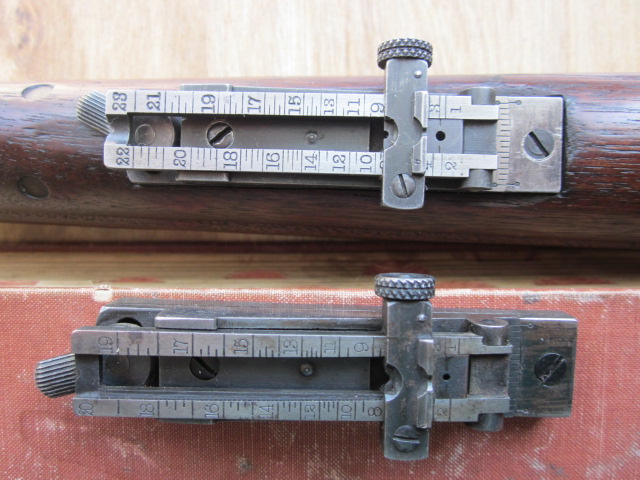

Beachbumbob:� The widths I gave for the 1901 slides, are the distances between the legs of their 'ladders'.� Also notice, the legs of the Carbine ladder are parallel (inside and outside).� The legs of the Rifle sight ladder taper on the inside to correct for drift as the slide is elevated.� Rifle and Carbine slides are not interchangeable.
