Title: Upper band assembly
Post by Max1066_33 on Oct 25^th, 2016 at 8:17pm

Do you have to take out the pin for the front sight blade to get the upper band onto the barrel of an 1898 Krag?

Title: Re: Upper band assembly
Post by butlersrangers on Oct 25^th, 2016 at 10:21pm

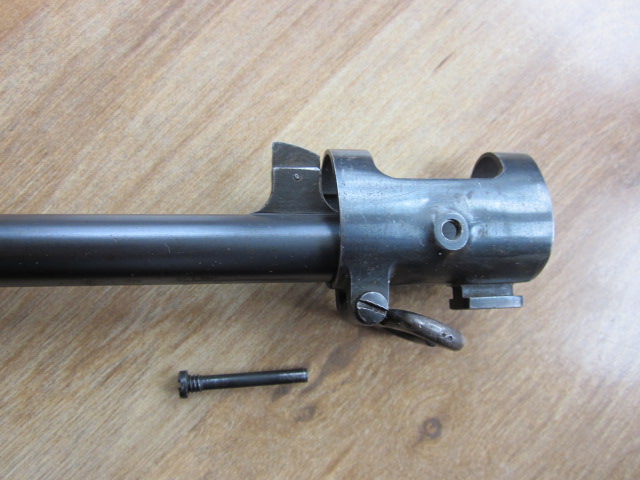

'Max1066' - Yes, the pin and front-sight blade must be removed from their base, in order to remove or replace the front barrel-band.

The small pin has a slight taper and should be driven 'left to right'. I have ground the tip of a nail to make a 'drift-punch' for the task. It doesn't take much force to remove the pin.


Title: Re: Upper band assembly
Post by Max1066_33 on Oct 26^th, 2016 at 2:05am

Thanks. I appreciate it.
