Post by butlersrangers on May 3rd, 2018 at 3:22pm
Mark: I happened to be looking at some reprinted U.S. Ordnance Manuals last night.

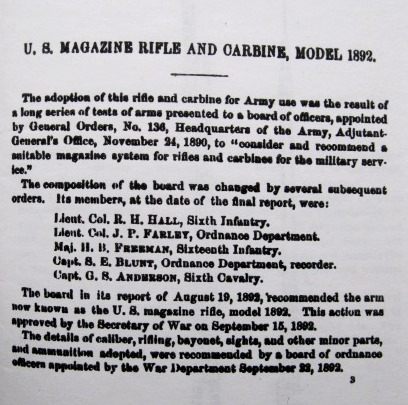

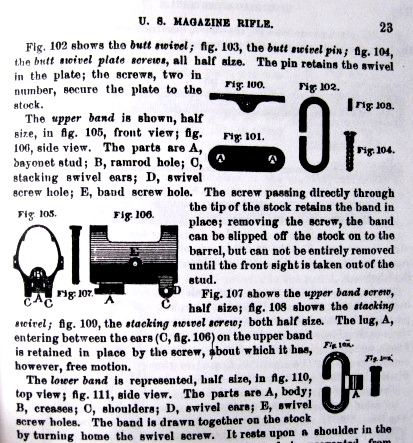

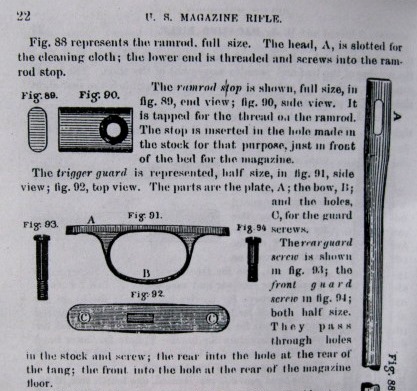

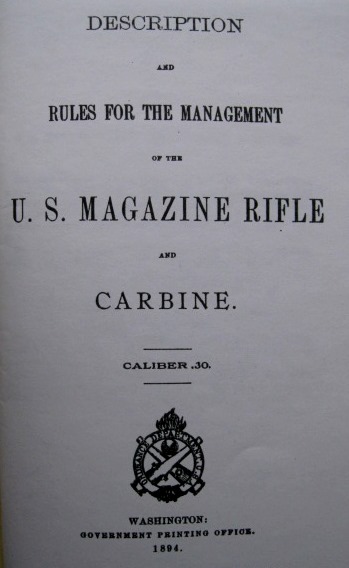

The reprint of "Rules For The Management .... ", printed in 1894, illustrates well, some of the features, of the U.S. Magazine Rifle, Model 1892.
These reprints are available on ebay sometimes for under $10.
mark-1.JPG ( 47 KB | 0
Downloads )
mark-2.JPG ( 82 KB | 0
Downloads )
mark-3.JPG ( 76 KB | 1
Download )
mark-4.JPG ( 106 KB | 1
Download )
The reprint of "Rules For The Management .... ", printed in 1894, illustrates well, some of the features, of the U.S. Magazine Rifle, Model 1892.
These reprints are available on ebay sometimes for under $10.
mark-1.JPG ( 47 KB | 0
Downloads )
mark-2.JPG ( 82 KB | 0
Downloads )
mark-3.JPG ( 76 KB | 1
Download )
mark-4.JPG ( 106 KB | 1
Download )
